HXY-A10  氣脹工作救生衣

適用范圍

適用于國內漁船和遠洋漁船

認可標準

《漁業船舶法定檢驗規則》(2000)及其修改通報；

SC/T8149-2015《漁業船舶用氣脹式工作救生衣》

產品技術參數

形式：單氣室

氣室材料： TPU

CO2 氣瓶重量：33g

充氣時間：≤5S

使用環境溫度： -30℃~+65℃

浮力：≥100N

浮力損失：≤5%

適合身高：≥155CM

適合體重：≥43KG

配件：口哨和提拉攀

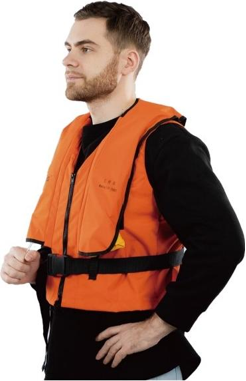

HXY-A10 Inflatable Working Lifejacket

The Scope Of Application

Applied to Domestic fishing vessels and Overseas fishing vessels

Approval Standard

Rules of Statutory Survey of Fishing Vessel(2000)and its Amendments  SC/T8149-2015Working inflatable lifejacket for fishing vessel

Product Specifications

Type:One   compartment

Compartment   Material:TPU

Co2 Cylinder weight:33g

Inflation     time:≤5S

Usage cnvironment temperature:-30℃~+65℃

Buoyancy:≥100N

Buoyancy    Loss:≤5%

Fit  for  height:≥155CM

Fit   for  weight:≥43KG

Accessories:whistle and lifting becket

1.打開拉鏈，將一只胳膊伸入救生衣內。

2.然后將另一只胳膊伸入救生衣內，拉好拉鏈并插好插扣。

3.整理衣服，調整帶子松緊度至自己舒服為止。

4.直接入水：溶解栓遇水自動發生溶解反應，使膨脹裝置動作刺穿氣瓶往氣囊中充入二氧化碳?xì)怏w                     充氣入水：右手用力下拉手動拉繩使膨脹裝置動作刺穿氣瓶往氣囊中充入二氧化碳?xì)怏w。

5.如果浮力不夠的情況下，可從吹氣管中往氣囊里吹入氣體。

1.Zip up life jacket and stretch one arm into life jacket.

2.Put the other arm into life jacket,zip up life jacket and fasten buckles.

3.Sort  out  life jacket,and  adjust  straps to the proper position.

4.Direct use:the  disovling plug  dissolves  automatically when it meets with water,which makes the  expansion  device  act to pierce   the gas cylinder andfill the air bag with carbon dioxide.Use after Inflation:pull sharply on the cord with your right hand,

which makes the expansion device act to pierce the gas cylinder and fill the air bag with carbon dioxide.

5.In case of insufficient buoyancy,please blow air into airbag through air tube.
